Smart scan Inspection System (Wheel Scan)/Air craft

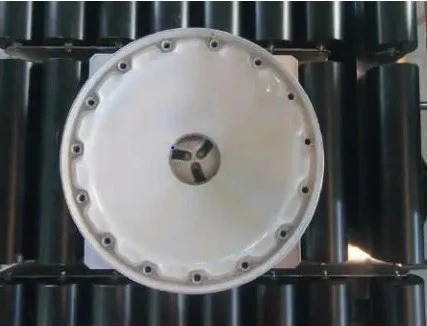

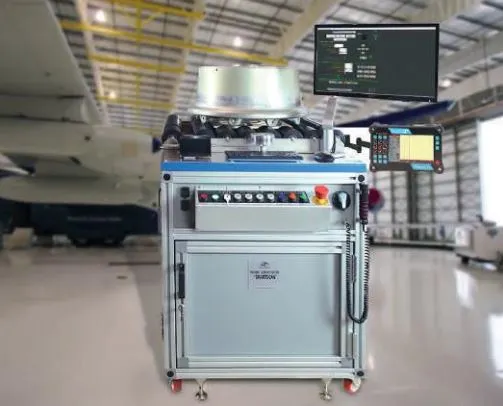

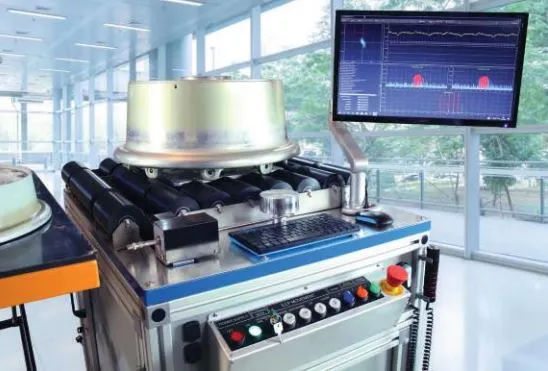

SMARTSCAN Aircraft Wheel Inspection
SMARTSCAN Aircraft Wheel Inspection System is intended
for testing of main and nose wheels of aircrafts of various world
manufacturers such as Messier - Bugatti, Goodrich, Honeywell,Maggitt and others.
The System ensures the testing of the following wheel areas:
* cylindrical surface of the wheel (tubewell);
- radial transition from cylindrical Surface to the Flange (bead Seat)
- zone of conjugation of the radial Transition into the Flange (flange)

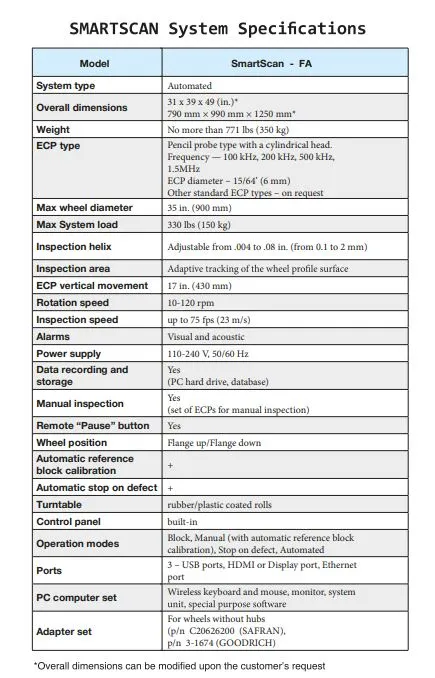

Parameters of the testing object
Outer diameters of the tested wheels:
minimum - 7.5 in. (190 mm)
maximum - 35 in. (900 mm)
Diameters of the centered holes of the tested wheels:
minimum - from 1.57 in. (40 mm)
maximum - up to 8 in. (200 mm)

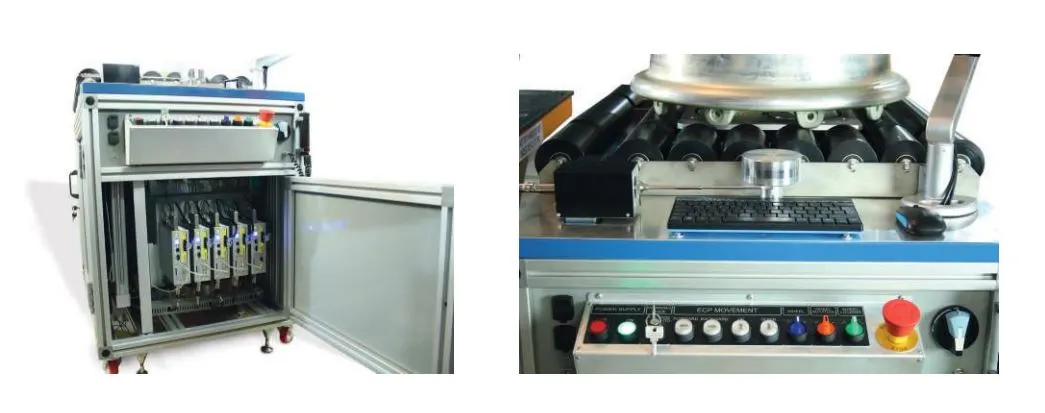

The System is produced in two versions:
ModelSMARTSCAN enables semiautomated inspection of wheels with portable eddy current flaw detectors of different manufacturers. The SMARTSCAN kit includes Eddycon C faw detector
Model SMARTSCAN-FAenables fully automated cycle of inspection with stop on defect mode, storage of inspection results and database creation, as well as printouts of inspection reports, etc. Eddycon D Flaw detector is delivered in the SMARTSCAN-FA kit.
