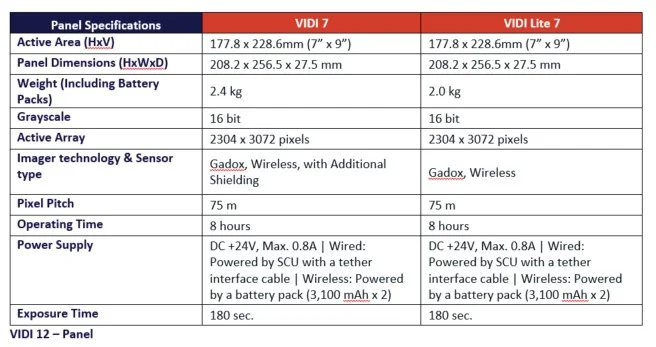

VIDI 7 – Panel

Panels

High Resolution for challenging weld applications

• • Compact – ideal for small spaces
• • Hi resolution – 75 µ pixel pitch
• • Rugged – shielding layer for high X-ray energy
• • Spots the smallest defects
• • Lightweight – 2.4 kg

VIDI Panel

Eliminating the need for film, this green solution saves on costs and storage. Fully compatible with all Vidisco systems and developed to the same standards. This lightweight, portable and autonomous system delivers immediate results.

VIDI Lite 7 Panel

When you need to use lower energy x-ray

• • Lighter – no shielding layer
• • Weighs only 2.0 kg
• • High resolution – 75 µ pixel pitch
• •Cost effective

• • The system panel is available with handle configuration
• • All Vidisco’s systems are manufactured under stringent quality control and assurance procedures and stand with ISO standard and backed by Vidisco’s outstanding support and service.

Panels

Obtains Instant Results, Onsite

• • One touch image capture
• • Hi efficiency
• • No consumables
• • Easy to carty
• • Fast, reliable deployment and reproducibility
• • IP 67 Panel
• • 1 m drop test

Compatible with wireless mode, comes with rugged case or back-pack and available in laptop or tablet screen.
The panel is available with handle configuration.

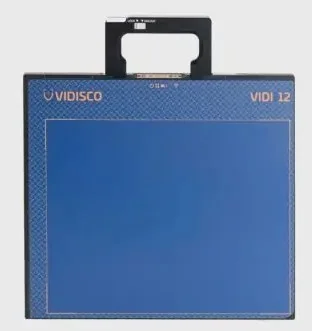

Rugged panel optimized for field

Made with extra shielding for high energy and with durable components, VIDI 12 panel provides long-lasting performance while requiring almost no maintenance. This dust and water-proof panel is designed for harsh field conditions.

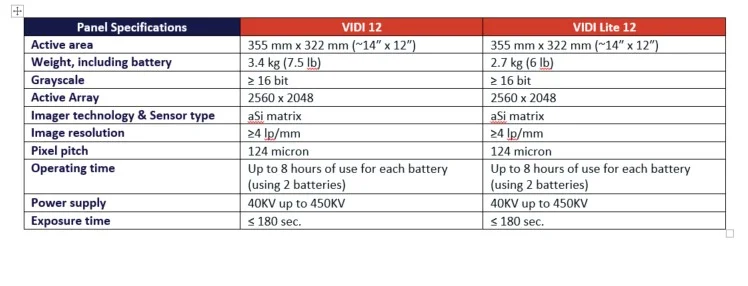

VIDI Lite 12 Panel- Lightweight panel delivers fast return on investment

This cost effective panel is easy to carry and operate

• • High image quality
• • Lighter – no shielding layer
• • Use lower energy
• • Cost effective

All Vidisco’s systems are manufactured under stringent quality control and assurance procedures and stands with ISO standard and backed by Vidisco’s outstanding support and service.
