• Strudy and compact, Wall mountes or bench top with optional battery backup
• Large LED Disply viewable from Long distance
• Local alaram annuciation with lamp indication and alarm acknowledgment
• Current output with respect to Doserate, Alarm and Power failure Relays with Alarm acknowledgment for Remote operation.
Applications
• Radiography
• Health - care and Irradiation facilites
• Nuclear Power Industry
• Industrial Untis
SCOPE

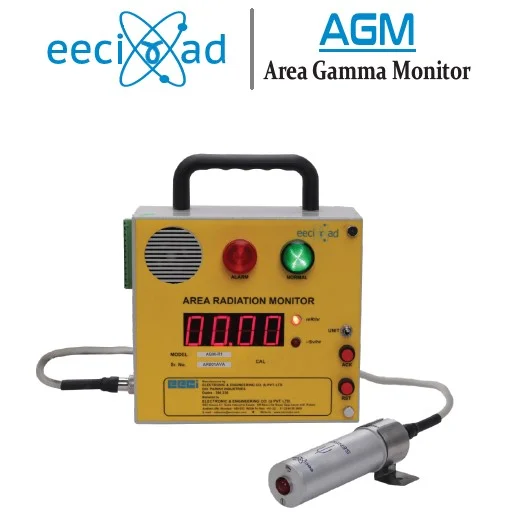

• Area Radiation Monitor, Model AGM-1 and AGM-R1 are microcontroller based, rugged, compact instrument.
• Main function of AGM is to display radiation levels of environment or field to caution radiation workers with aydible and visual alaram when alarm situation arises.
• It has Lamp and hooter for local alarm indcation and Relays and alarm acknowledgement for Remote with current output with respect to doserate
• Alarm can be set through out the measuring range.
